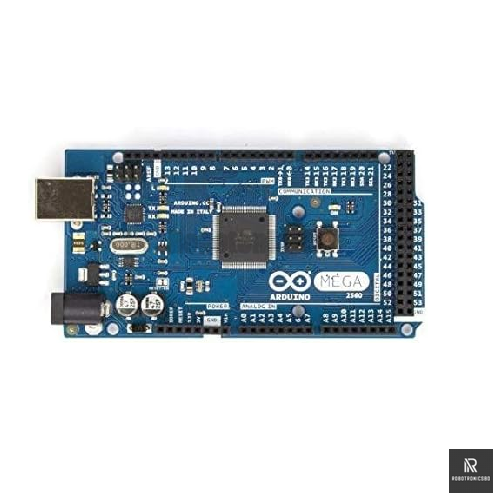

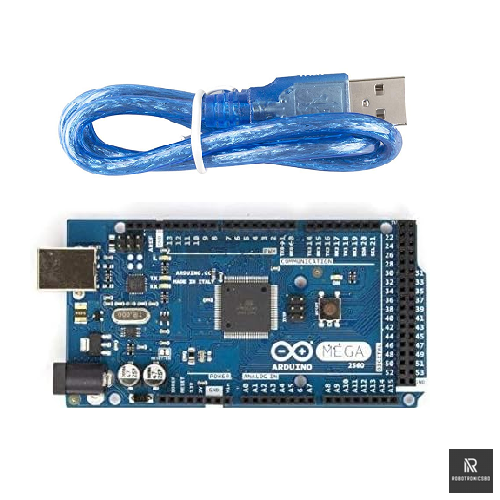

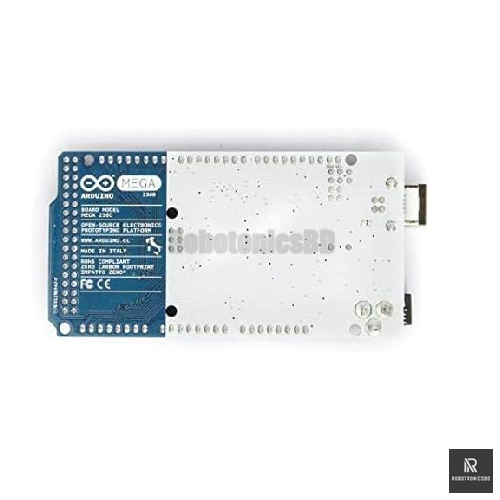

The Arduino Mega 2560 R3 is a high-performance microcontroller board built around the ATmega2560, offering significantly more memory, I/O pins, and processing power than the standard Uno. It is perfect for advanced robotics, home automation, 3D printer control, data logging, and industrial-level automation systems.
This board features 54 digital I/O pins (15 can be used as PWM outputs), 16 analog inputs, and 4 hardware serial ports (UARTs). It also includes a USB interface, power jack, ICSP header, and a reset button. Compatible with most Arduino shields and fully supported by the Arduino IDE, the Mega 2560 is perfect for users who need extra space, more inputs/outputs, and higher processing capacity.
Its expanded pinout and memory capacity make it the go-to board for large-scale Arduino projects in both academic and professional fields.
⭐ Key Features:
-
🧠 Based on the powerful ATmega2560 microcontroller
-
🧩 Offers more I/O pins and memory than Arduino Uno
-
🧵 Comes with 4 UARTs (hardware serial ports)
-
🔌 54 digital I/O pins, 16 analog inputs, 15 PWM outputs
-
💻 Fully compatible with the Arduino IDE (Windows, Mac, Linux)
-
🔋 Operates at 5V – ideal for most sensors, shields, and modules
-
🛠️ Perfect for 3D printers, robotics, IoT, and data acquisition projects
⚙️ Technical Specifications:
-
Microcontroller: ATmega2560
-
Operating Voltage: 5V
-
Input Voltage (recommended): 7–12V
-
Digital I/O Pins: 54 (15 PWM)
-
Analog Input Pins: 16
-
PWM Channels: 15
-
UARTs: 4 (Hardware Serial Ports)
-
Clock Speed: 16 MHz
-
Flash Memory: 256 KB (8 KB used by bootloader)
-
SRAM: 8 KB
-
EEPROM: 4 KB
-
USB Interface Chip: ATmega16U2
-
USB Connector: Type B
-
Dimensions: 101.5 mm x 53.3 mm
-
Weight: ~37g
