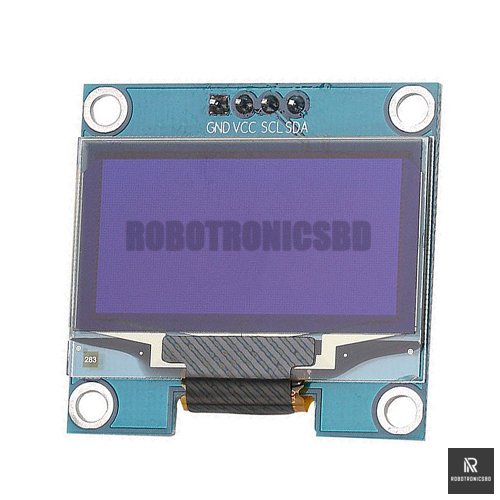

The 0.96 inch OLED Display Module is a crisp, lightweight, and low-power screen designed for displaying sensor data, system information, or custom graphics in embedded systems. With a resolution of 128×64 pixels, this monochrome OLED offers excellent contrast and visibility, even in low-light environments.
Using the I2C interface, this module requires only two data lines (SCL and SDA), making it ideal for projects with limited I/O. It works seamlessly with platforms like Arduino, ESP8266, ESP32, STM32, and Raspberry Pi, and is supported by popular libraries such as Adafruit SSD1306 and U8g2.
Whether you’re building an IoT device, a weather station, a battery monitor, or a wearable gadget, this display provides a professional look and reliable performance in a compact form factor.
⭐ Key Features:
-
📺 128×64 pixel resolution for clear text and graphics
-
🔌 I2C communication (requires only 2 pins: SDA & SCL)
-
🔋 Low power consumption – great for battery-powered devices
-
💻 Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and more
-
🧩 Supported by popular libraries: Adafruit SSD1306, U8g2
-
🖤 Monochrome (White/Blue/Yellow variants available)
-
📦 Compact size – perfect for small enclosures or wearables
-
🛠️ Easy to use with beginner and advanced projects
⚙️ Technical Specifications:
-
Display Type: OLED (Organic Light Emitting Diode)
-
Screen Size: 0.96 inch
-
Resolution: 128 x 64 pixels
-
Color: Monochrome (White / Blue / Yellow depending on stock)
-

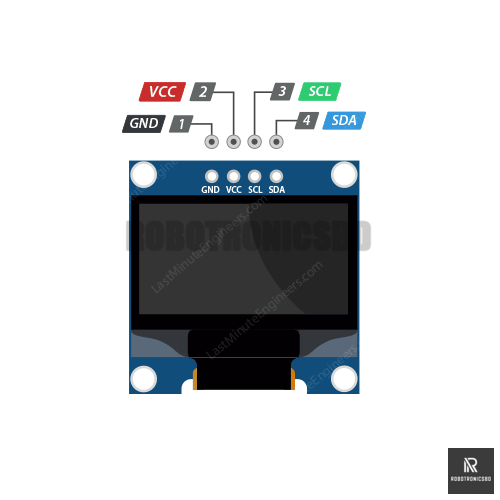

Interface: I2C (4-pin: GND, VCC, SCL, SDA)
-
Operating Voltage: 3.3V – 5V
-
Driver IC: SSD1306
-
Viewing Angle: >160°
-
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR
-
Dimensions (approx.): 27mm x 27mm x 4.1mm
-
Mounting: PCB holes for easy placement
