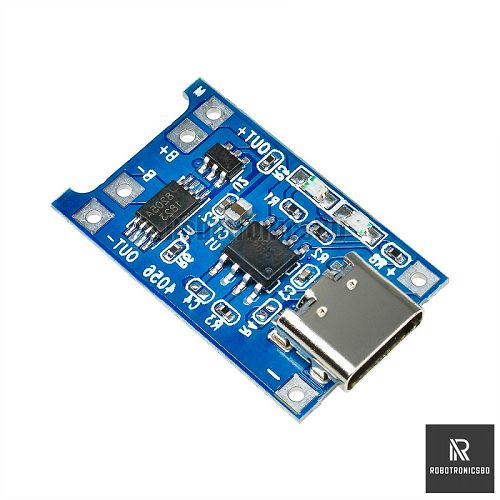

The TP4056 Lithium Battery Charging Module (Type-C USB Input) with Dual Protection is an efficient and cost-effective solution for charging single-cell 3.7V Li-ion batteries, such as 18650, 14500, and other compatible cells.
Equipped with Type-C USB input, it allows easy and modern connectivity for reliable charging via laptop, power bank, or USB adapter. This module integrates the TP4056 chip along with DW01A and FS8205A protection ICs, offering built-in over-voltage, over-current, over-discharge, and short-circuit protection—making it a safe choice for embedded and DIY projects.
Perfect for Arduino, ESP32, IoT projects, portable power banks, and solar battery applications, the module delivers up to 1A charging current and LED indicators for charging status monitoring.
⭐ Key Features:
-
🔌 Type-C USB input for modern and convenient charging
-
🔋 Compatible with 3.7V 18650 Li-ion & similar batteries
-
⚡ Built-in dual protection circuit (overcharge & over-discharge)
-
🔧 Supports 1A constant current charging
-

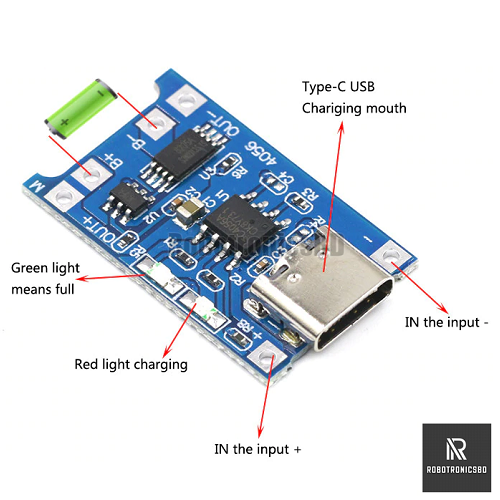

💡 LED Indicators for Charging (Red) and Full Charge (Blue)
-
🧠 Smart charging control using TP4056 IC
-
🛡️ Includes DW01A protection IC + FS8205A dual MOSFET
-
🔍 Compact and easy to integrate into DIY projects
⚙️ Technical Specifications:
| Parameter | Details |
|---|---|
| Charging IC | TP4056 |
| Input Connector | USB Type-C |
| Input Voltage | 5V DC |
| Charging Current | 1A (max) |
| Battery Support | 3.7V Li-ion (18650, 14500, etc.) |
| Protection Features | Overcharge, Over-discharge, Short Circuit |
| Indicators | Red (Charging), Blue (Fully Charged) |

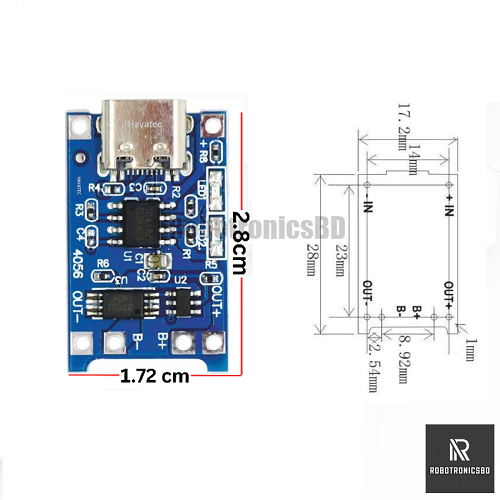

| Board Dimensions | ~26mm x 17mm x 4mm |
| Applications | DIY power bank, Arduino, ESP projects, IoT |
